HT Fiber Laser Tube Cutting Machine
3000w-12000w
ENEX: Innovate 4+1 Chucks Structure
ENEX 4+1 Chucks Structure: Core Advantages
• C3+C4 chucks for double support, firm pipe fixation.
• 4-point loading clamping for enhanced load-bearing.
• 2-point cutting area clamping for high precision.
ENEX: Ultimate Performance

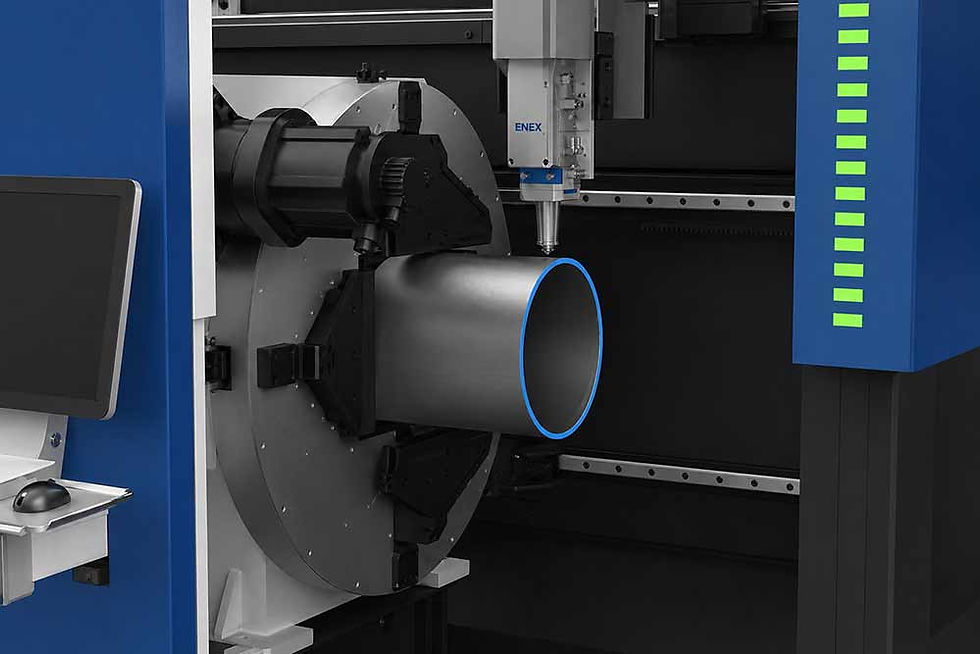

ENEX features front and rear chuck support design with automatic center adjustment, suitable for all kinds of pipes.

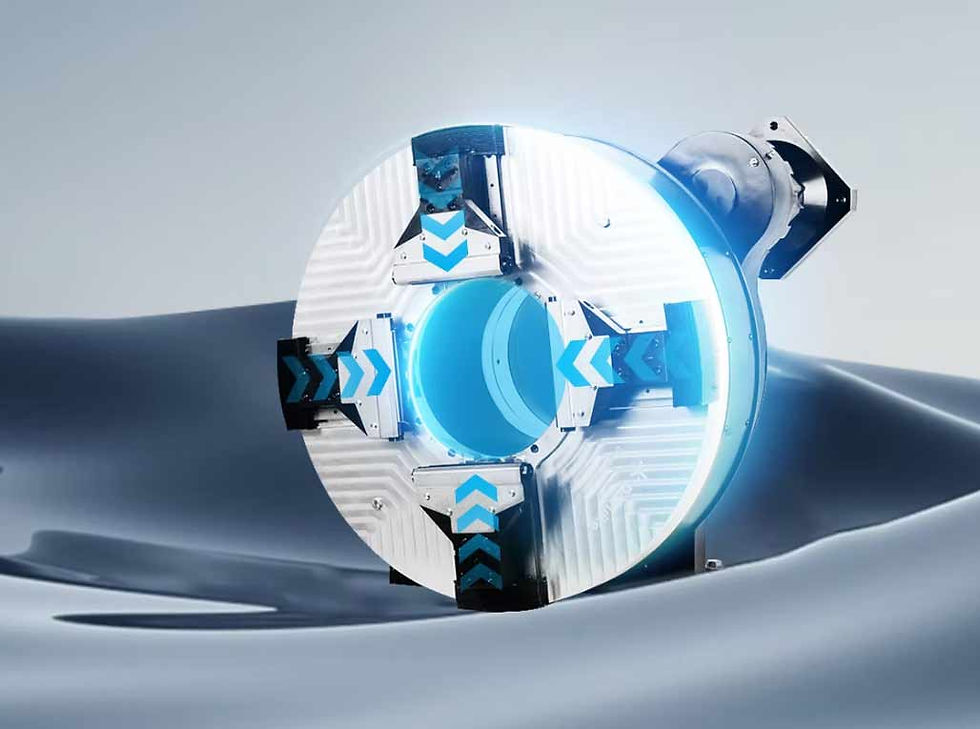

Strong Clamping
ENEX laser cutters are equipped with a high-quality pneumatic chuck for stable and smooth tube feeding. The pneumatic chuck provides strong and reliable clamping force, which can firmly fix the pipe and avoid offset or shaking during the feeding process, ensuring the stability of the cutting operation. In addition, the chuck has extremely high positioning accuracy, with the positioning error controlled within ±30”, which can accurately locate the pipe position, lay a solid foundation for precise cutting, and effectively improve the qualification rate of finished products.
ENEX Intelligent Bus Cutting System
The ENEX intelligent bus cutting system further improves the speed and efficiency of the frog jump function, integrating fast and intelligent piercing mode and fast and intelligent knife retraction mode for smooth and efficient system operation.
Zero Tailing Cutting
-
Multi-chuck reverse movement enables zero-tailing cutting for heavy pipes.
-
Effectively reduce leftover materials and save production costs.
Technical Parameters
Model | LFT9038HT | LFT12046HT |
Tube Length (mm) | 9000mm | 12000mm |
Tube Diameter (mm) | 380mm / 460mm/ 520mm / 570mm /650mm | 380mm / 460mm/ 520mm / 570mm /650mm |
Laser Power (kW) | 3000W-12000W | 3000W-12000W |
Max. Operating Speed (m/min) | 30 | 30 |
Positioning Accuracy (mm) | ± 0.05 | ± 0.05 |
Repositioning Accuracy (mm) | ± 0.02 | ± 0.02 |
Max. Rotational Speed (r/min) | 30 | 30 |
Max. Acceleration (G) | 0.3 | 0.3 |
Max. Table Load (kg) | 1000 | 1000 |
