Laser Welding Machine

1000w-3000w



Easy Operation

Simple operation, fast welding speed, beautiful weld seam and zero consumables.

Suitable for thin stainless steel, iron, aluminum and other metal plates.

Perfectly replace traditional argon arc welding and electric welding.

Laser Welding Head

Handheld swing welding mode, lightweight and highly flexible.

Interactive control system enlarges the light spot for better weld forming.

Ergonomic lightweight design for comfortable long-time operation.

Compatible with multi-angle nozzles to meet diverse welding demands.

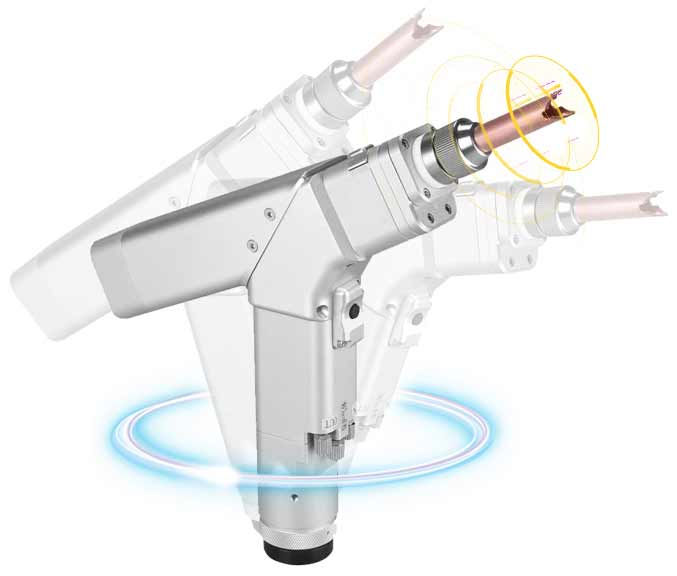

360 Degree Welding

Precise focused laser spot for accurate positioning, ideal for mass welding of miniature workpieces.
Adapts to thin-walled materials and precision components, supporting spot, butt, stack and seal welding.
360° all-round welding with narrow seam, low thermal impact and minimal deformation.
High welding speed, no or little post-weld finishing required.

Industry Applications

The handheld laser welding machine widely used in cabinet kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel furnishings and other industries.

Technical Parameters

Model	DYK-WELD35B	DYK-WELD50B	DYK-WELD60B
Wire Diameter (mm)	0.8-1.6	0.8-1.6	0.8-1.6
Main Unit Net Weight (kg)	43	44.5	45.5
Main Unit Dimensions	625465260	625465260	625465260
Welding Torch Weight (kg)	≤ 0.7	≤ 0.7	≤ 0.7
Stainless Steel Welding Thickness (mm)	3.5	5	6
Carbon Steel Welding Thickness (mm)	3	4	5
Galvanized Steel Welding Thickness (mm)	3	4	5
Aluminum Plate Welding Thickness (mm)	2.5	3.5	4.5
Fiber Cable Length / Power Cord Length (m)	10 / 5	10 / 5	10 / 5
Gas Consumption	Nitrogen / Argon	Nitrogen / Argon	Nitrogen / Argon
Voltage (V) / Frequency (Hz)	Single-phase 220 V, 50/60 Hz	Single-phase 220 V, 50/60 Hz	Single-phase 220 V, 50/60 Hz

Model	HW1.0	HW1.5	HW2.0	HW3.0
Dimensions (cm)	125×60×110 / 56×25×35	125×60×110 / 56×25×35	125×60×110 / 56×25×35	125×60×110 / 56×25×35
Equipment Weight (kg)	150	150	150	150
Laser Power (W)	1000W-3000W	1000W-3000W	1000W-3000W	1000W-3000W
Welding Gap Width (mm)	≤ 0.5	≤ 0.5	≤ 0.5	≤ 0.5
Welding Speed (mm/s)	0 - 120	0 - 120	0 - 120	0 - 120
Welding Wire Diameter (mm)	0.8 / 1.0 / 1.2 / 1.6	0.8 / 1.0 / 1.2 / 1.6	0.8 / 1.0 / 1.2 / 1.6	0.8 / 1.0 / 1.2 / 1.6
Cooling Method	Water Cooling	Water Cooling	Water Cooling	Water Cooling
Carbon Steel Welding Thickness (mm)	0.5-2.5	0.5-3.5	0.5-5	0.5-8
Stainless Steel Welding Thickness (mm)	0.5-2.5	0.5-3.5	0.5-5	0.5-8
Aluminum Alloy Welding Thickness (mm)	0.5-1.5	0.5-2	0.5-3	0.5-4.5
Galvanized Material Welding Thickness (mm)	0.5-2.5	0.5-3.5	0.5-5	0.5-8
