Sheet & Tube Fiber Laser Cutting Machine
1500w-12000w
ENEX: Cuts Both Plates and Pipes
Integrated design combines plate and pipe cutting functions in one machine, saving equipment purchase costs and floor space, and making space layout more flexible.
ENEX High Dynamic Performance
The ENEX laser cutter features high dynamic performance, with a maximum linkage speed of 100m/min and an acceleration of 1.5G, improving processing efficiency and significantly reducing processing time.
ENEX Fully Automatic Double Pneumatic Chuck
It can cut circular tubes with a diameter of 20-240mm, and it is also suitable for cutting square tubes, angle steels, and channel steels. The maximum weight of a single tube is 300kg, with a wide cutting range and strong cutting ability, easily meeting diverse processing needs.

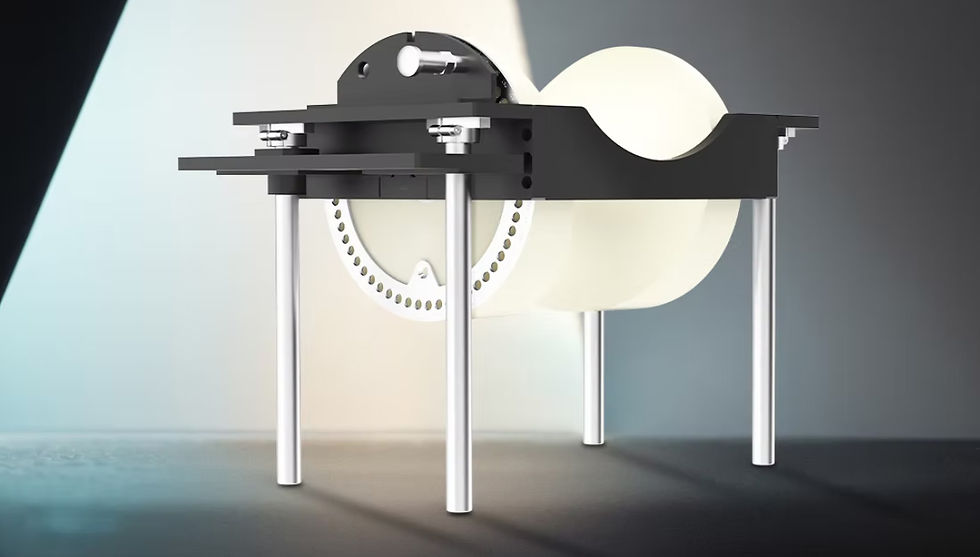

Dual Pneumatic Concave Wheel Support
Equipped with 2 pneumatic concave wheel support frames, it provides stable support during the tube cutting process, avoiding tube sagging or deformation and improving machining accuracy.
ENEX High-Rigid Frame Structure: Multi-point Support & Stabilized Bed Design
ENEX laser cutters feature a high-rigid chassis structure and fully annealed bed frame, providing superior rigidity to resist heat and deformation. Triple-row anchoring and densely clamped guide rails create a supercar-grade rigid chassis.
Maintains ultra-precision even under long-term high-speed operation, meets strict industry tolerances, and reduces vibration and noise for a better working environment.
ENEX System makes operation and monitoring simpler.
The ENEX system integrates multiple powerful processing functions, coupled with a friendly human-computer interaction interface, to achieve convenient operation, greatly reducing the difficulty of operation, and helping you improve processing efficiency and enterprise benefits.
Technical Parameters
Model | LFS-MT6024-3015 | LFS-MT6024-4020 | LFS-MT6035-6025 |
Working Area (mm) | 3000*1500 | 4000*2000 | 6000*2500 |
Max. Tube Cutting Length (mm) | 6000 | 6000 | 6000 |
Effective Tube Cutting Diameter (φ) | 10-350 | 10-350 | 10-350 |
Laser Power (W) | 1500-12000 | 1500-12000 | 1500-12000 |
X/Y-Axis Positioning Accuracy (mm) | ± 0.05 | ± 0.05 | ± 0.05 |
X/Y-Axis Repositioning Accuracy (mm) | ± 0.03 | ± 0.03 | ± 0.03 |
