Tube Laser Cutting Machine
1000w-3000w
ENEX: All Kinds of Pipes can be cut

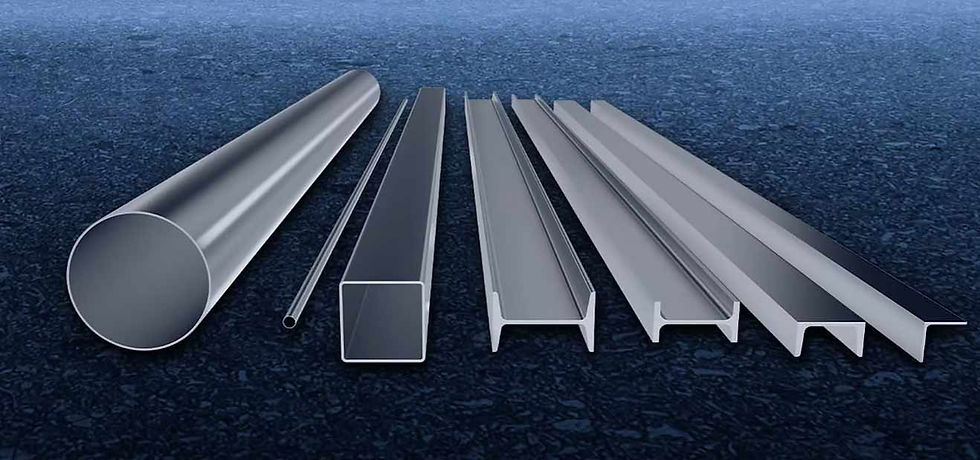

ENEX is a pipe cutting expert, capable of cutting most special-shaped pipes such as round pipes, square pipes, rectangular pipes and oval pipes.
ENEX: Ultimate Performance
ENEX features front and rear chuck support design with automatic center adjustment, suitable for all kinds of pipes.
Strong Clamping
ENEX laser cutters are equipped with a high-quality pneumatic chuck for stable and smooth tube feeding. The pneumatic chuck provides strong and reliable clamping force, which can firmly fix the pipe and avoid offset or shaking during the feeding process, ensuring the stability of the cutting operation. In addition, the chuck has extremely high positioning accuracy, with the positioning error controlled within ±30”, which can accurately locate the pipe position, lay a solid foundation for precise cutting, and effectively improve the qualification rate of finished products.
ENEX Intelligent Bus Cutting System
The ENEX intelligent bus cutting system further improves the speed and efficiency of the frog jump function, integrating fast and intelligent piercing mode and fast and intelligent knife retraction mode for smooth and efficient system operation.
Technical Parameters
Model | LFT6016 | LFT6024 |
Tube Processing Range (mm) | Automatic Loading: 6000 × φ10–160；Manual Loading: 7100 × φ10–160；(Square Tube: 10×10 – 110×110) | Automatic Loading: 6000 × φ10–160；Manual Loading: 7100 × φ10–160；(Square Tube: 10×10 – 110×110) |
Laser Power (kW) | 1 / 1.5 / 2 / 3 | 1 / 1.5 / 2 / 3 |
Tube Length (mm) | 6000 | 6000 |
Tube Diameter (mm) | 160 / 240 / 360 | 160 / 240 / 360 |
Max. Operating Speed (m/min) | 100 | 100 |
Positioning Accuracy (mm) | ± 0.05 | ± 0.05 |
Repositioning Accuracy (mm) | ± 0.02 | ± 0.02 |
Max. Rotational Speed (r/min) | 100 | 100 |
Max. Acceleration (G) | 0.8 | 0.8 |
