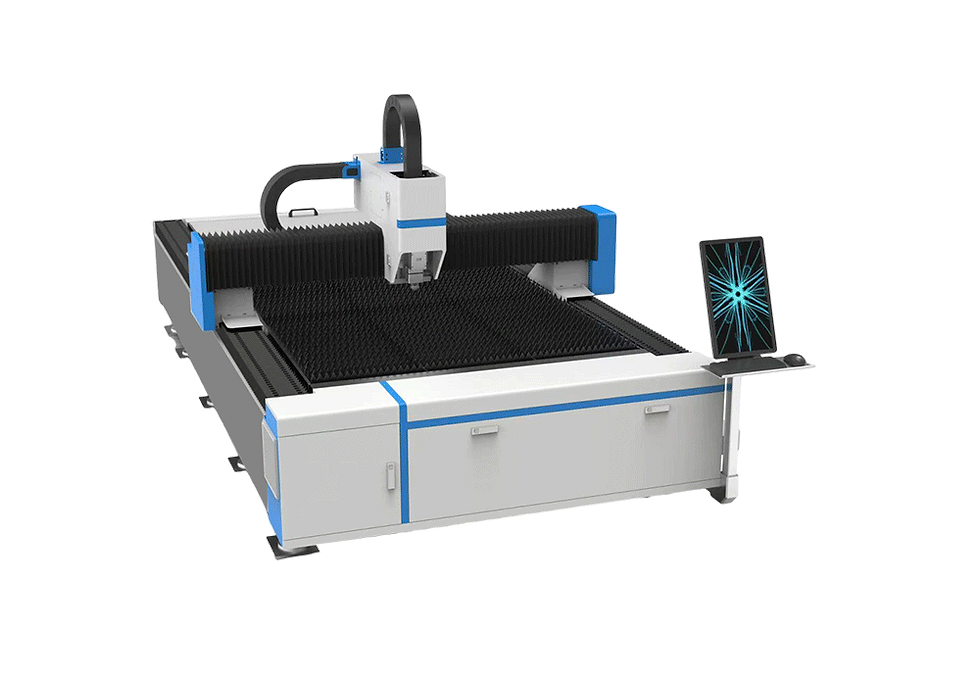

One Single Table Laser Cutting Machine
1500w-60000w
ENEX High-Strength Steel Beam
The ENEX steel gantry is made of reinforced plates welded onto rectangular steel bars, followed by an annealing process to relieve stress.
ENEX Intelligent Bus Cutting System
The ENEX intelligent bus cutting system further improves the speed and efficiency of the frog jump function, integrating fast and intelligent piercing mode and fast and intelligent knife retraction mode for smooth and efficient system operation.
ENEX Cutting Head
-
Speed closed-loop control adjusts cutting speed according to the characteristics of carbon steel sheets to ensure parts fall off smoothly.
-
Replace human eyes with machine vision to achieve precise alignment.
-
Real-time feedback on nozzle condition to prevent damage in a timely manner.
-
Provide quick parameter recommendation function for boards of unknown materials.
ENEX Track-Proven Cutting Path Algorithm: Optimized Paths for Uninterrupted Cutting
ENEX laser cutters feature a track-proven cutting path algorithm with optimized paths for uninterrupted cutting. The one-stroke-flying cutting algorithm automatically optimizes routes, minimizes idle motion, and streamlines production. It adapts quickly to mixed small-batch jobs, cuts cycle times, and speeds up customer response.
ENEX: Making High Speed Even Smarter
ENEX laser cutters come with AI-powered system integration: process optimization and equipment diagnosis at your fingertips.
ENEX: Cost-Effective with Fast ROI, Overall Costs Reduced by 45%
Based on 10 sheets of 1mm stainless steel with complex profiles, ENEX laser cutters reduce overall costs by 45%. They improve pricing competitiveness, help win more orders, and directly increase profit margins.
Technical Parameters
Model | LFS3015 | LFS4020 | LFS6020 | LFS6025 | LFS6025 | LFS8020 | LFS12025 | LFS13026 | LFS14032 |
Power | 1500W-60000W | 1500W-60000W | 1500W-60000W | 1500W-60000W | 1500W-60000W | 1500W-60000W | 1500W-60000W | 1500W-60000W | 1500W-60000W |
Processing Format | 3050*1500 | 4000mm*2000mm | 6000mm*2000mm | 6000mm*2500mm | 6000mm*2500mm | 8000mm*2000mm | 12000mm*2500mm | 13000mm*2600mm | 14000mm*3200mm |
Max. Acceleration | 2.0G | 2.0G | 2.0G | 2.0G | 2.0G | 2.0G | 2.0G | 2.0G | 2.0G |
Low-pass Filtering | 8Hz | 8Hz | 8Hz | 8Hz | 8Hz | 8Hz | 8Hz | 8Hz | 8Hz |
Max. Linkage Speed | 200m/min | 200m/min | 200m/min | 200m/min | 200m/min | 200m/min | 200m/min | 200m/min | 200m/min |
X/Y-axis Positioning Accuracy (mm) | ± 0.05 | ± 0.05 | ± 0.05 | ± 0.05 | ± 0.05 | ± 0.05 | ± 0.05 | ± 0.05 | ± 0.05 |
X/Y-axis Repeatability (mm) | ± 0.03 | ± 0.03 | ± 0.03 | ± 0.03 | ± 0.03 | ± 0.03 | ± 0.03 | ± 0.03 | ± 0.03 |
